$9.00
Original: $29.99

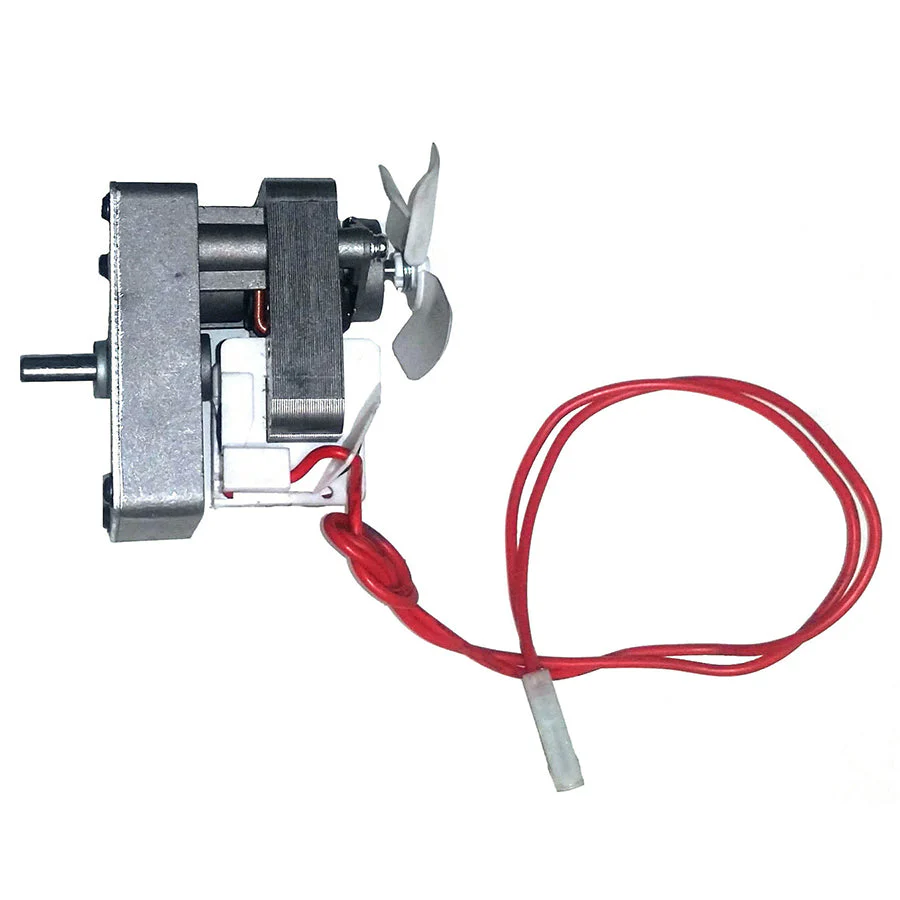

-70%Auger Motor - PB 2 RPM Series—
$29.99
$9.00The Story
Instructions:
- Unplug your unit from the power supply
- Remove the service door under the hopper
- Disconnect the wires of the temperature probe, igniter, fan and motor respectively
- Remove the setting screw for the ground wire, and then unplug the power cord from the bracket
- Remove four screws in front and back of hopper, and then remove the hopper completely
- Remove the screws and auger motor, then replace with the new
- Reinstall and lock the hopper
- Pass the power cord through hole 1 and then lock the ground wire
- Connect the wires and secure them
- Reinstall the service door under the hopper
Description
Instructions:
- Unplug your unit from the power supply
- Remove the service door under the hopper
- Disconnect the wires of the temperature probe, igniter, fan and motor respectively
- Remove the setting screw for the ground wire, and then unplug the power cord from the bracket
- Remove four screws in front and back of hopper, and then remove the hopper completely
- Remove the screws and auger motor, then replace with the new
- Reinstall and lock the hopper
- Pass the power cord through hole 1 and then lock the ground wire
- Connect the wires and secure them
- Reinstall the service door under the hopper
